ASTARIGLAS® LED SHEET High-performance light diffusing sheets
Astari Logo
Astari Logo
ASTARIGLAS® LED SHEET
SLIMMER AND BRIGHTER
ASTARIGLAS® LED SHEET
PRODUCT INFORMATION

Characterized by slim profile, reliability, low energy and long service life, LED is increasingly more popular to illuminate signboards and other display applications, gradually replacing traditional light sources.

Taking advantage of LEDs’ brilliant features, including optimized backlighting performance, we are proud to introduce ASTARIGLAS® LED cast acrylic sheets, which provide high quality lighting while eliminating many of the constraints and challenges that existing LED systems impose.

The acrylic sheets come in opal white and various colors, enabling sign makers and designers to enjoy the virtues of LEDs and create slimmer, brighter and cost-effective backlit solutions.

PRODUCT PROPERTIES
  • Maximized hiding power to conceal LED light sources and eliminate “banding” or “hotspots” as close as 1 cm from light source
  • Optimum brightness and strength of color
  • Improved light diffusion that leads to higher luminous efficiency
  • Low energy use and heat output, making them cost effective and environmentally feasible
  • Elegant slim backlit signage solutions
  • Weather resistant
  • Retained superior physical attributes and characteristics of cast acrylic sheet products
  • Trouble-free fabrication
  • Lightweight – half the weight of glass
APPLICATION AREA

ASTARIGLAS® is your perfect choice to use in various segments.
From advertising to transportation, hospital, food and beverages, and many other industries.

Next
Prev
PRODUCT RANGE & PRODUCT OFFER

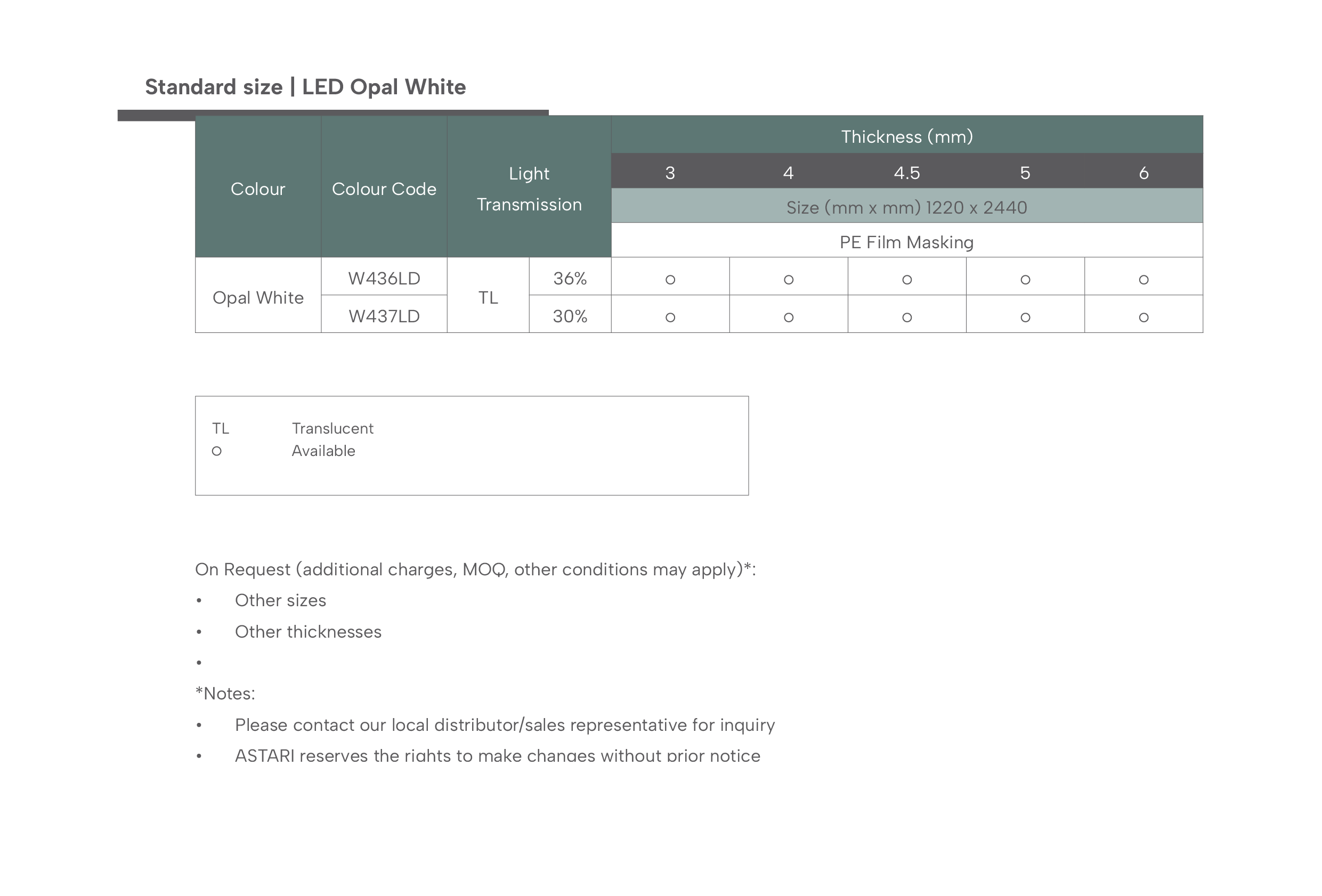

LED OPAL WHITE

Sourced for its superior light diffusing properties, ASTARIGLAS® LED Opal White is manufactured with customized formula that allows designers to create slimmer and stylish signage boxes. The backlighting offers high degree of white opacity in incident light and daylight.

Another benefit is the ability to conceal hotspots from LED lamps without compromising brightness, due to optimized translucency that provide high transmission paired with maximum light diffusion.

ASTARIGLAS® LED opal white sheets are available in standard thickness of 3 mm to 6 mm & W436 LD with high transmission and W437 LD with pronounced light diffusion.

Available Thickness

From 3mm up to 6mm


Available Size

1220mm x 2440mm ; 2050mm x 3050mm


Available Masking Type

PE Film Masking

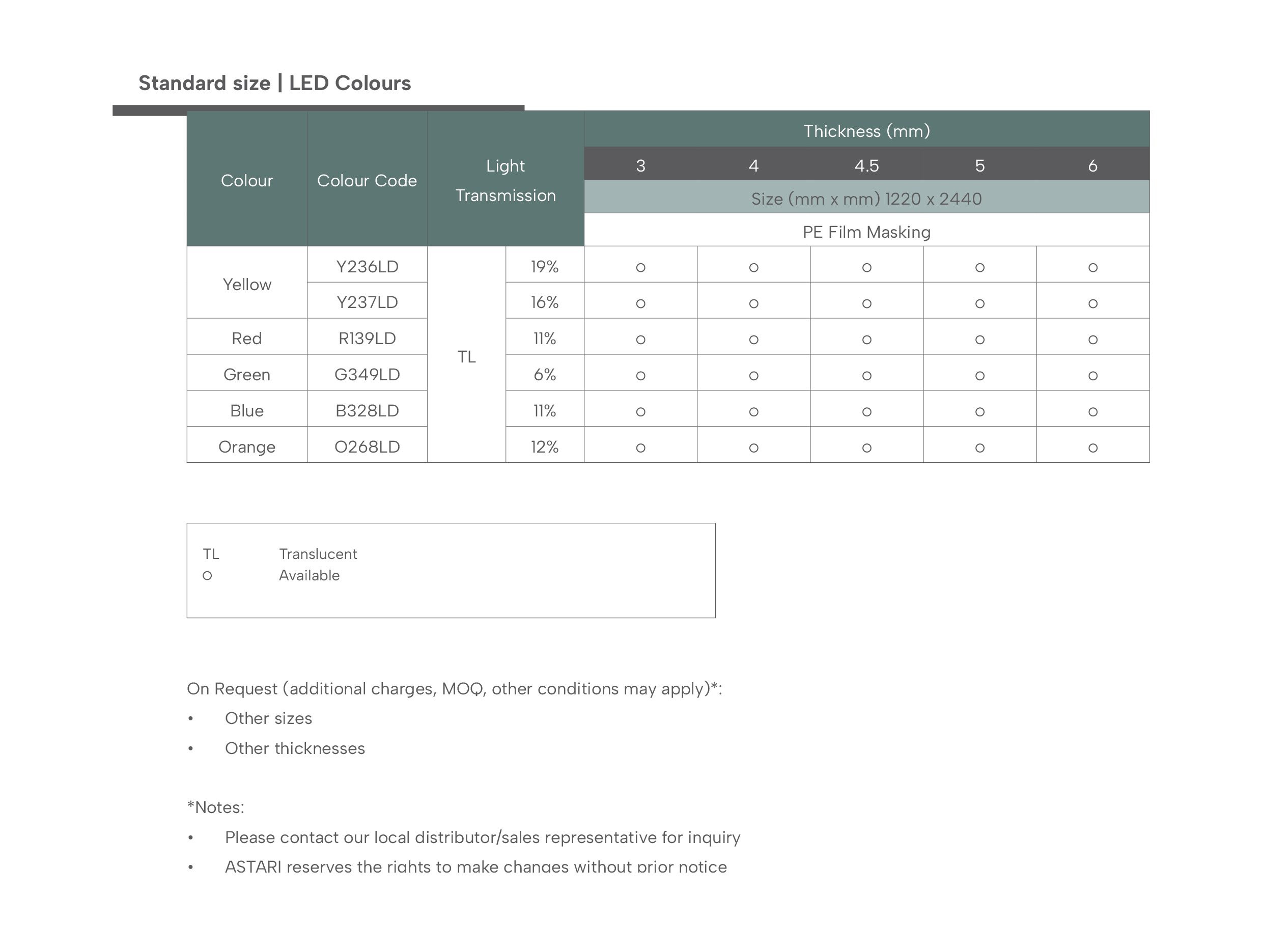

LED COLOURS

These translucent sheets derive from the technology that combines good light diffusion and optimal light transmission, allowing the coloured surface to glow evenly without LED hotspots, creating complete energy-efficient LED signage designs.

ASTARIGLAS® LED delivers maximum efficiency and superior lighting technology, making them predominantly used in illuminated signs, store fixtures and exhibiton booths.

ASTARIGLAS® LED coloured sheets are available in 3mm to 6mm standard thickness. Compared to conventional fluorescent and neon tubes, illuminated signs with ASTARIGLAS® LED consumes less energy. This is increasingly important in signage construction as advertising displays are often illuminated 24/7. Meanwhile, the full potential of LEDs can only be harnessed using the right material.

Available Thickness

From 3mm up to 6mm


Available Size

1220mm x 2440mm ; 2050mm x 3050mm


Available Masking Type

PE Film Masking

RELATED PRODUCTS

These are products that can apply together with ASTARIGLAS® LED SHEET.

ASTARIGLAS® ECO CAST
ASTARIGLAS® XT
ASTARIGLAS® LED BLOCK
TECHNICAL INFORMATION
HANDLING & STORAGE

Click below for instant access to our ASTARIGLAS® CAST ACRYLIC SHEET Handling & Storage.


Request PDF
Please Fill In The Form To Get
HANDLING & STORAGE Document



TECHNICAL DATA SHEET

Click below for instant access to our ASTARIGLAS® CAST ACRYLIC SHEET Technical Data Sheet.


Request PDF
Please Fill In The Form To Get
TECHNICAL DATA SHEET Document



CHEMICAL RESISTANCE PROPERTIES

Click below for instant access to our ASTARIGLAS® CAST ACRYLIC SHEET Chemical Resistance Properties.


Request PDF
Please Fill In The Form To Get
CHEMICAL RESISTANCE PROPERTIES Document




WARRANTY

ASTARIGLAS® CAST ACRYLIC SHEET Warranty.



Request PDF
Please Fill In The Form To Get
WARRANTY Document



THICKNESS TOLERANCE

Click below for instant access to our ASTARIGLAS® CAST ACRYLIC SHEET.



Request PDF
Please Fill In The Form To Get
THICKNESS TOLERANCE Document



CERTIFICATION & COMPLIANCES

Find out more about our certification and compliance.


CERTIFICATION
ASTARIGLAS® UL94-HB

All ASTARIGLAS® sheet have been certified by Underwriters Laboratories to UL 94HB, the Standard for Safety of Flammability of Plastic Materials (for slow burning on a horizontal specimen).


ASTARIGLAS® UL 752

ASTARIGLAS® BR have been certified by UL 752 level 1, this product provides protection against three shots of a 124-grain 9mm full metal copper jacket with lead core at an fps between1175 and 1293.


ASTARIGLAS® ISO 9001 - 2015

All ASTARIGLAS®  Acrylic Sheets are manufactured to meet the standard specification of ISO 9001:2015.


COMPLIANCE
ASTARIGLAS® ROHS3

All ASTARIGLAS® Clear and Opal Sheet products are in compliance with the applicable provisions of RoHS 3 Directive 2015/863/EU.


ASTARIGLAS® CALIFORNIA PROPOSITION 65

All ASTARIGLAS® Clear sheet do not contain any chemical known to the State of California to cause cancer, birth defects, or any other reproductive defects.


FDA
ASTARIGLAS® FDA

Please be advised that all ASTARIGLAS® clear products are in compliance with the FDA Food Additive Regulation 21 CFR177.1010 (acrylic and modified acrylic plastics, semi-rigid and rigid) for use in contact for all types of food except for high alcohol content foods (greater than 8% alcohol) at or below room temperature.


ASTARIGLAS® EPA-PBT

All ASTARIGLAS® sheet complies to EPA regulatory on PBT chemicals.


ASTARIGLAS® ANSI Z26.1

All ASTARIGLAS®  clear sheet meets the American National Standard For Safety Glazing Motor Vehicles And Motor Vehicle Equipment Operating On Land Highways (ANSI Z26.1-1996).


ASTARIGLAS® REACH 244 SHVC’s

All ASTARIGLAS® Clear sheet conforms to REACH regulation and do not contain any substances included in SHVC’s 244 lists in a concentration in excess the specified threshold limits.


ASTARIGLAS® NYSED

All ASTARIGLAS® sheet complies to New York State Education Department (NYESD) flammability standards for plastic glazing used to construct sneeze guards or separators.


DOT
ASTARIGLAS® DOT

All ASTARIGLAS® Clear sheet meets the standard of ANSI Z26.1, a standard used by Department of Transportation (DOT).


ASTARIGLAS® ASTM_D – 4802 – 10

All ASTARIGLAS® Cast Acrylic Sheets are manufactured to meet the standard specification of ASTM D 4802-10.


ASTARIGLAS® BIO Compatibility

All ASTARIGLAS® Clear products are biocompatible and in compliance to ISO 10993-5 (Cytotoxicity).


ASTARIGLAS® BPA FREE

All ASTARIGLAS® products are BPA free.


ASTARIGLAS® EN 263 Compliance

ASTARIGLAS® SW is manufactured to meet the standard specification of EN 263 Compliance.




REQUEST PDF
Please Fill In The Form To Request Certification & Compliance PDF


CERTIFICATION



COMPLIANCE


Product LITERATURE ASTARIGLAS® LED SHEET
PROCESSING ASTARIGLAS®

ASTARIGLAS® is easy to fabricate.
We prepared fabrication guidelines to make your working with ASTARIGLAS® easier.
